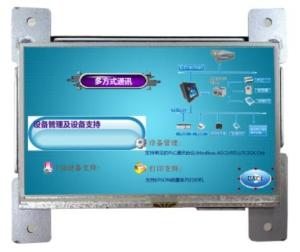

Small Resistive Touch Panel HMI RS232 RS485 Smart PLC Display

  • 1
  • 2

Brand Name : LONGYU

Model Number : HMIAT3043TSM

Certification : CE RoHS

Place of Origin : China

MOQ : 1 pcs

Price : TBA

Payment Terms : T/T, Western Union，Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Work Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Product size : 4.3 Inch

Resolution ratio : 480*272

LCD screen : 4.3-inch TFT LCD, LED backlight, color 65536 bits

Display brightness : 300cd/m2

Touch screen : Four wire resistive

Interface : 2*RS232、1*RS485、1*LAN

Operational temperature : -10℃ to +65℃

Extension interface : 2*USB 2.0

Contact Now

Product Description

Smart RS232 RS485 Small Size PLC Display Resistive Touch Panel HMI

HMIAT3043TSM is a high-performance embedded integrated human-computer interface based on the industrial-grade Cortex A7 (dual-core main frequency 1.2 Ghz) CPU. The product is designed with a 5-inch LED LCD display (resolution 480*272) and a four-wire resistive touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.

Specifications:

● LCD screen:4.3-inch TFT LCD, LED backlight, color 65536 bits

● Resolution:480*272

● Display brightness:300cd/m2

● C P U:Cortex A7,dual core 1.2 Ghz

● Memory:128M SRAM

● Touch screen:Four wire resistive, click more than 1 million times

● Storage device:128M NAND FLASH

●Interface:1*RS232,2*RS485,1*LAN

●Product Size:W114mm×H97.3mm×D24.6mm

●Opening size:W96mm×H55mm

Product Performance:

·LCD screen: : 4.3-inch TFT LCD, LED backlight, color 65536 bits
·Resolution : 480*272
Display brightness : 300cd/m2
·C P U : Cortex A7,dual core 1.2 Ghz
·Memory : 128M DDR2
·Touch screen : Four wire resistive, click more than 1 million times
·Storage device : 128M NAND FLASH
·SD card extension : Optional, Max scalability 64G
·Interface : 2*RS232 ,1*RS485 ,1*LAN
·Extension interface : 2*USB 2.0
·GPIO interface : 8 GPIO interface
·Real time clock : Available
·Buzzer : Available
·Operational temperature : -20℃ to +65℃
·Degree of protection : IP 65( operating surface)
·Input voltage : 12V to 30V Wide range input voltage
·Anti interference : Power frequency magnetic field interference level 4,Magnetic field strength 100A / M
·Product Size : W114mm×H97.3mm×D24.6mm
·Opening size : W96mm×H55mm
Small Resistive Touch Panel HMI RS232 RS485 Smart PLC DisplaySmall Resistive Touch Panel HMI RS232 RS485 Smart PLC Display
Small Resistive Touch Panel HMI RS232 RS485 Smart PLC Display
Small Resistive Touch Panel HMI RS232 RS485 Smart PLC Display
Small Resistive Touch Panel HMI RS232 RS485 Smart PLC Display
Small Resistive Touch Panel HMI RS232 RS485 Smart PLC Display
