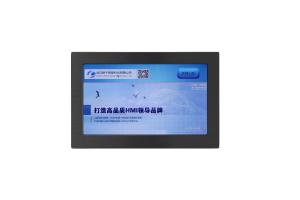

Industrial Resistive Touch Monitor Embedded 4 Wire Touch Panel RoHS

Name: Industrial Resistive Touch Monitor Embedded 4 Wire Touch Panel RoHS
Brand: LONGYU
Price: 1 USD

China Industrial Resistive Touch Monitor Embedded 4 Wire Touch Panel RoHS factory

Brand Name : LONGYU

Model Number : LYA101G20C-W

Certification : CE RoHS

Place of Origin : China

MOQ : 1 pcs

Price : TBA

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Work Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Material : Aluminum alloy face frame, metal back cover

Resolving power : 1280 * 800

Operating System : Android11.0/Ubuntu18.04/Linux 4.19

Running memory : 2GB/4GB

EMMC : 16GB/32GB/64GB/128GB

GPU : Mali-G52 1-Core-2EE

Way to stall : Flat, outer, embedded

Touch form : 4 Line resistance touch

Power interface : 3 PIN*2.54mm terminal DC24V provides power supply

Power input : 12V-30V(Recommended value 24V)

Contact Now

Industrial Grade Resistive Touch Monitor 10.1 Inch Size High Performance Mainboard

LYA101G20C-W is a high-performance embedded integrated touch screen with the industrial Rockchip RK3568 (quad-core A55 main frequency 2.0 Ghz) CPU as the core. The product features a high-resolution 10.1-inch LED LCD display (resolution of 1280 * 800) and a 4-wire resistance touch screen. Support for USB, Ethernet, DI / DO, RS232, RS485, CAN, WIFI, BT interface, etc. It is suitable for industrial automation control, HMI, small and medium-sized medical analyzer and other industry applications. Built-alone 0.8T NPU can be used for lightweight AI applications.

	parameter	information
System	CPU processor	RK3568 / Cortex A55 4 core main frequency at 2.0GHZ
	Operating System	Android11.0/Ubuntu18.04/Linux 4.19
	Running memory	2GB/4GB
	EMMC	16GB/32GB/64GB/128GB
	GPU	Mali-G52 1-Core-2EE
Display	Size	10.1 Inch
	Resolving power	1280 * 800
	Touch form	4 Line resistance touch
	Luminance	300 cd/ m²
	Angle of view	Full perspective
Material	Material quality	Aluminum alloy face frame, metal back cover
	Way to stall	Flat, outer, embedded
	Dimension	269 * 174 * 46mm
	IP protection grade	Industrial grade IP65 dustproof water proof (operating face)
Source	Power interface	3 PIN*2.54mm terminal DC24V provides power supply
Source	Power input	12V-30V(Recommended value 24V)
Environmental Character istics	Working temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Operating humidity	5-90 RH%
	Serial port	2 RS232,2 RS232 / RS485 switch; 6-way TTL serial port (reuse with serial port)
	Audio interface	1-way MIC interface
	Gigabit Ethernet interface	1-Route 10 / 100 /1000 Mbps Ethernet port
	HDMI interface	1 HDMI output, with a maximum resolution of 3840 * 2160
	TF	1-Route TF card interface
	SIM card	1 Standard drawer-type interface with reserved eSIM interface
	RTC	1 Built-in supercapacitor
	WIFI/BT	2.4G WIFI / BT4.2
	4G interface	Expand mini PCIE 4G module
	GPIO interface	4-way GPIO, IO direction is input and output configurable, and IO level is 5.0V；
	USB2.0	1 Vertical plug interface USB 2.0, 4 horizontal plug interface USB 2.0,1 built-in row pin (USB 2.0)
	USB3.0	1 Vertical USB 3.0 (switch through dial switch)
